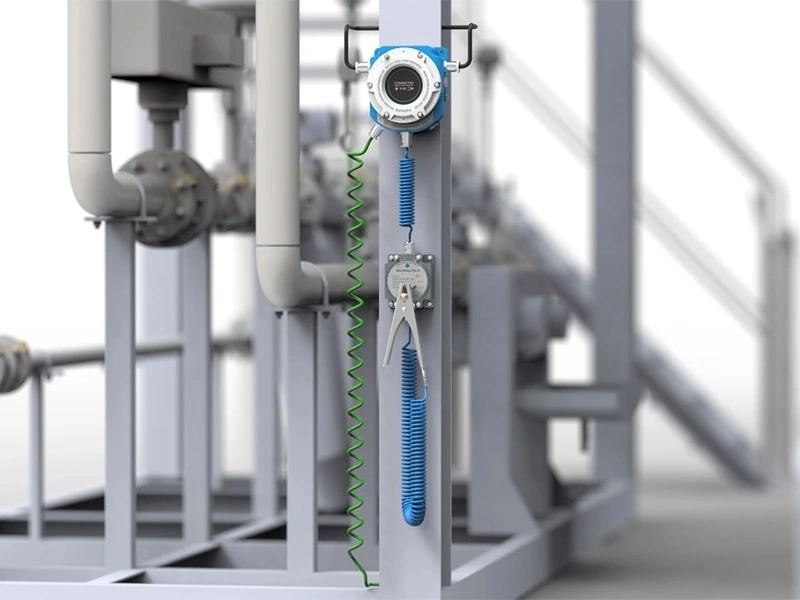

In hazardous area loading, unloading, filling, and transfer operations, static grounding is not only about connecting a clamp. It is also about verifying whether the grounding connection is effective, visible, and controllable throughout the operation.
However, when comparing system configuration and functional design, Earthing Pro offers several technical advantages that may be valuable for users who require higher visibility, easier integration, and more flexible site management.
Below are five key differences.
1. Wider Power Supply Compatibility
Earthing Pro supports both 24V~48VDC and 85V~250VAC power supply options.
This wide power input design can simplify project selection and installation, especially for sites where different power conditions may exist. Instead of selecting different models for different voltage requirements, users can manage power compatibility more flexibly.
For engineering teams, this may help reduce model selection complexity, spare parts pressure, and installation uncertainty.
2. More Communication and Signal Output Options
Earthing Pro provides voltage-free contact output and RS485 communication.
Traditional static grounding monitors often rely mainly on switch signal output for interlock control. Earthing Pro adds RS485 communication, making it easier to connect the grounding system with PLC, DCS, SCADA, or other monitoring platforms.
This is useful when the site needs more than a simple “permit / no permit” signal. With communication capability, grounding status can become part of the plant’s digital monitoring and safety management system.
3. Real-Time Resistance Value Display and Audible Alarm
Earthing Pro not only has an audible alarm, but is also equipped with an LED display and supports real-time resistance value display.
The system uses red and green status indicators to help operators quickly determine whether the grounding loop is valid. In addition to simple status indication, the real-time resistance display provides measurable visibility into poor grounding conditions.
This makes alarm status more intuitive and helps operators and maintenance teams inspect, record, and verify the grounding condition more easily during daily operation and troubleshooting.
4. Operator Guidance
Earthing Pro provides clear operator guidance to help users follow the correct grounding procedure step by step.
In daily site operations, operators may have different levels of experience. Clear guidance makes the system easier for new operators to understand and use, reducing dependence on personal experience or repeated training.
By guiding the operator through the required grounding process, Earthing Pro helps standardize operation, reduce misuse, and ensure that grounding is completed in a compliant and safe manner before product transfer begins.
5. More Flexible Multi-Channel Monitoring
Earthing Pro supports single-channel, dual-channel, and multi-channel grounding monitoring, with configurations up to 16 channels.
This makes it suitable for applications such as multiple loading bays, drum filling stations, IBC filling areas, and multi-point grounding systems. For users who need centralized monitoring of several grounding points, higher channel scalability can reduce system complexity.
Earthing Pro also supports clamp stowage detection and customized options, which can help users build a more complete grounding management process.
Conclusion
Static grounding monitoring is becoming more than a basic safety interlock. Modern loading and transfer operations require systems that can provide clear status, measurable data, communication output, operator guidance, and scalable channel management.
Earthing Pro is designed for users who need a more visible, flexible, and integrated static grounding solution.
By combining wide power input, RS485 communication, real-time resistance display, operator guidance, and multi-channel capability, Earthing Pro provides a practical option for improving static grounding control in hazardous area operations.
In hazardous area loading, unloading, filling, and transfer operations, static grounding is not only about connecting a clamp. It is also about verifying whether the grounding connection is effective, visible, and controllable throughout the operation.
In tanker loading applications, overfill prevention is one of the most important safety functions at the loading rack. A reliable system must confirm that the tanker connection is correct, the probe circuit is healthy, and the loading process can be stopped before product reaches an unsafe level.
In tank truck loading, overfill protection should be a loading permission system, not only a warning light. A modern controller checks whether the tanker, probe circuit and grounding condition are ready before product transfer starts, and it continues monitoring these conditions throughout loading.
ALPTEC Earthing Pro provides real-time resistance monitoring, alarms, relay interlock, and Modbus communication for tank truck loading, fuel terminals, chemical plants, drums, rail tank cars, and FIBC applications.
