Grounding clamps and cable assemblies for static grounding systems, available in multiple clamp types, cable lengths and explosion-proof configurations for different applications.

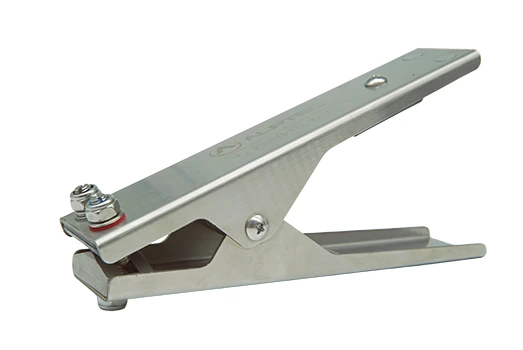

Clamps:

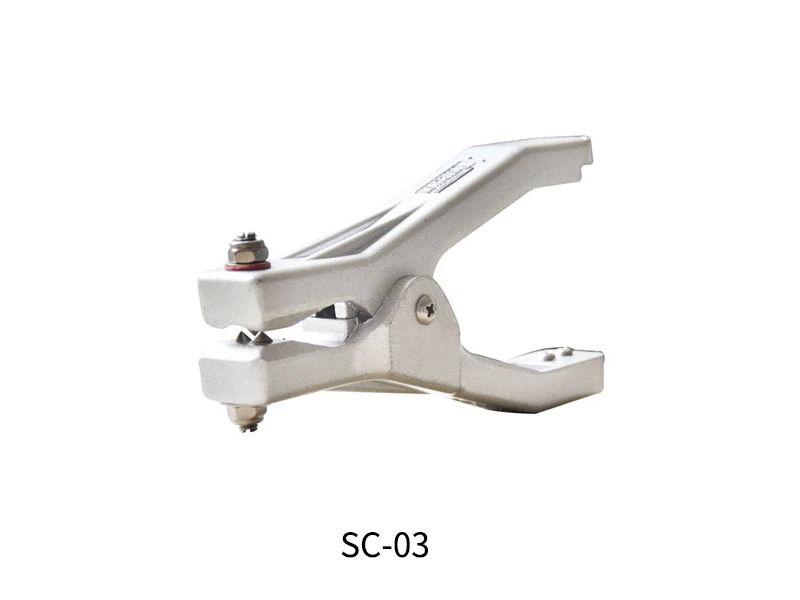

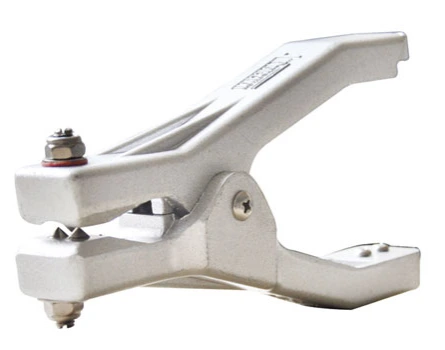

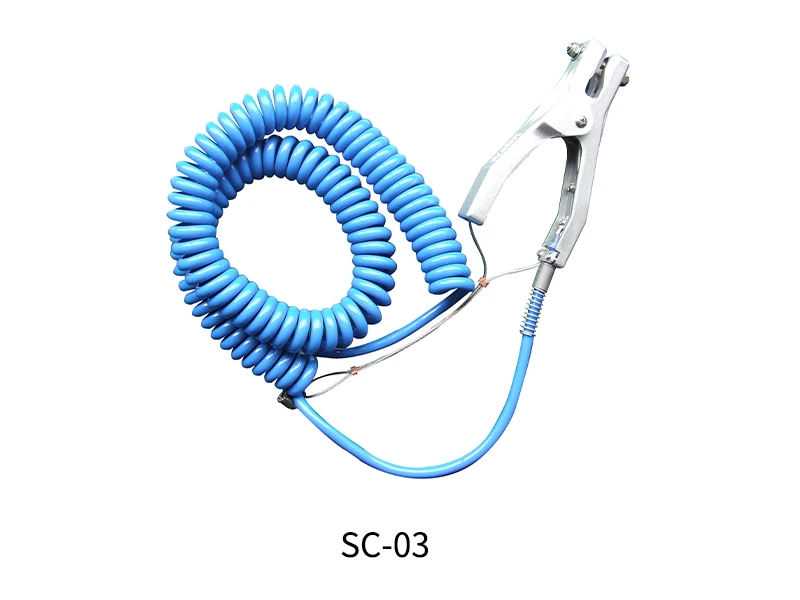

| Option 1: SC-03 | Body: Copper-free aluminium (cast) |  |
| Weight: 0.3 kg | Paint-piercing pins: 3×tungsten carbide | |
| Max. Opening: 30 mm | Dimensions (L×W×H): 160×90×45 mm | |
| Option 2: SC-08 | Body: 304 stainless steel |  |
| Weight: 0.38 kg | Paint-piercing pins: 3×tungsten carbide | |
| Max. Opening: 26 mm | Dimensions (L×W×H): 205×100×43 mm | |
| Option 3: SC-09 | Body: 304 stainless steel |  |
| Weight: 0.25 kg | Paint-piercing pins: 2×copper alloy | |
| Max. Opening: 12 mm | Dimensions (L×W×H): 140×80×23 mm | |
| Option 4: SC-10 | Body: 304 stainless steel |  |
| Weight: 0.32 kg | Paint-piercing pins: 3×tungsten carbide | |
| Max. Opening: 20 mm | Dimensions (L×W×H): 170×82×38 mm |

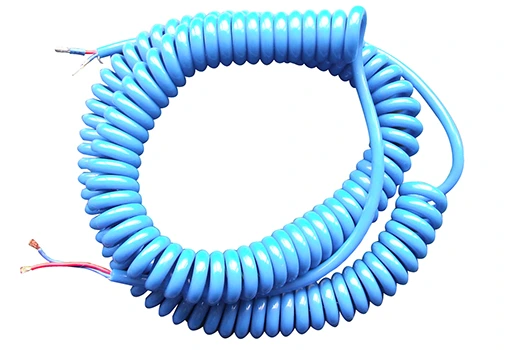

Cables:
| Cable jacket | Polyether-based TPU |  |
| Conductors | 2 x 1.5 mm² copper | |
| Optional lengths | 3 m, 7 m, 10 m, 13 m, 15 m, or customized-length spiral cable | |
