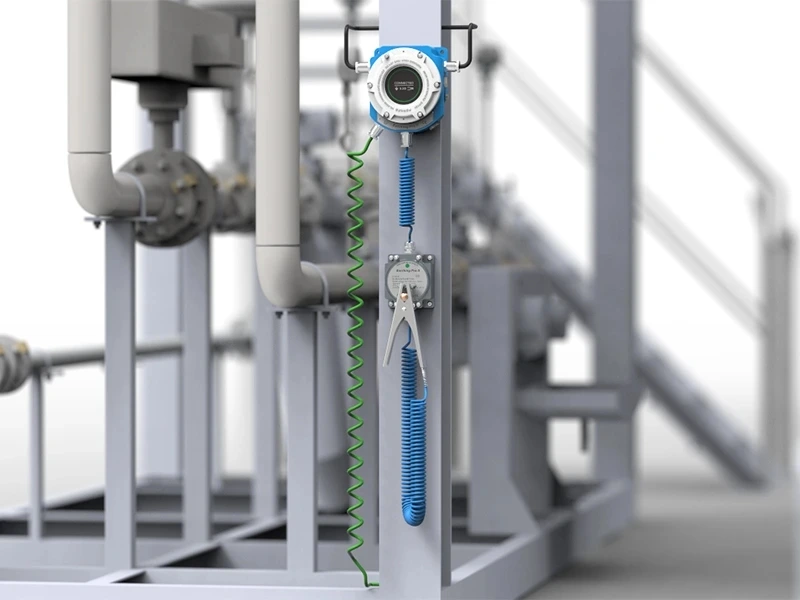

ALPTEC Earthing Pro provides real-time resistance monitoring, alarms, relay interlock, and Modbus communication for tank truck loading, fuel terminals, chemical plants, drums, rail tank cars, and FIBC applications.

Real-Time Static Earthing Monitoring for Hazardous Loading Areas

Static electricity is a common ignition risk in fuel loading, chemical transfer, powder handling, and other hazardous-area operations. During tank truck loading, drum filling, rail tank car transfer, or FIBC handling, a poor earthing connection can allow static charge to accumulate and create a potential ignition source.

Traditional static earthing devices usually rely on red and green indicators. A green light means the operation can continue, while a red light means the earthing condition is abnormal. This is useful for quick decisions, but it does not help operators understand why the connection failed.

ALPTEC Earthing Pro adds real-time resistance monitoring to the earthing process. Instead of only showing pass or fail, it displays the actual earthing condition and helps operators identify poor clamp contact, paint insulation, corrosion, cable damage, loose terminals, or unstable grounding points.

The Challenge

In many loading areas, the earthing connection is made and removed repeatedly throughout the day. Each tank truck, drum, rail tank car, or FIBC bag creates a new connection condition.

Common site problems include:

The clamp is attached to a painted or corroded surface.

The clamp teeth are worn or the spring force is reduced.

The cable is damaged, loose, or internally broken.

The earthing point is unreliable or poorly maintained.

The operator cannot identify which channel caused the alarm in a multi-bay loading area.

The loading system cannot automatically verify earthing status before pump start or valve opening.

When the device only shows a red light, operators may need to check the clamp, cable, vehicle, and earthing point one by one. This increases troubleshooting time and may lead to alarm fatigue.

How Real-Time Resistance Monitoring Helps

Earthing Pro displays the resistance value during operation, allowing site personnel to see the quality of the earthing path.

For metallic objects such as tank trucks, drums, rail tank cars, and loading equipment, Earthing Pro uses a 10 ohm alarm threshold and displays the resistance value to one decimal place. When the clamp is moved from a poor contact point to exposed metal, the resistance change can be seen immediately.

For conductive FIBC applications, Earthing Pro FIBC monitors resistance according to 10 Mohm / 100 Mohm levels. This helps operators identify poor contact with the earthing label, interruption of the conductive path, contamination, or incorrect clamping position.

This makes the alarm easier to understand. Operators can respond faster, and maintenance teams can identify gradual deterioration before it causes repeated alarms or process interruption.

Suitable Applications

ALPTEC Earthing Pro can be used in a wide range of hazardous-area and industrial loading applications, including:

Tank truck loading and unloading

Fuel terminals and depots

Chemical loading stations

Drum and IBC filling areas

Rail tank car loading

FIBC powder handling

Solvent and flammable liquid transfer

Multi-bay loading systems

Static earthing interlock for pumps, valves, and batch controllers

Integration with Site Safety Systems

In hazardous operations, earthing status should not remain only on the display. It should also be part of the control process.

Earthing Pro provides audible and visual alarms, relay output, and RS-485 communication. Device status can be transmitted through Modbus RTU, allowing integration with PLCs, loading systems, batch controllers, and supervisory systems.

This allows the earthing signal to be used as a precondition for process operation:

The pump can start only when earthing is qualified.

The valve can open only after a safe earthing connection is confirmed.

The loading process can stop or remain locked when earthing is interrupted.

The control room can monitor earthing status through digital communication.

By linking static earthing to the safety interlock logic, sites can reduce dependence on manual judgment and improve operational consistency.

ALPTEC Earthing Pro Solutions

ALPTEC offers different Earthing Pro configurations for different operating conditions:

Earthing Pro GE: static earthing monitoring for general metallic equipment, drums, rail tank cars, and loading areas.

Earthing Pro TK: tank truck earthing system with vehicle recognition logic for road tanker loading applications.

Earthing Pro FIBC: resistance monitoring for conductive FIBC bags used in hazardous powder handling.

Earthing Pro DU: dual-channel detection for two earthing points or two operating positions.

Earthing Pro MUL: multi-channel centralized monitoring for loading bays and multi-point earthing systems.

Each configuration is designed to help operators confirm a reliable earthing path, reduce troubleshooting time, and support safer loading and transfer operations.

Why It Matters

A good static earthing system should do more than tell operators whether they can proceed. It should help them understand the condition of the connection and support the safety logic of the whole site.

Real-time resistance display turns earthing status into clear, explainable data. It helps operators correct poor clamp contact, helps maintenance teams find cable or clamp deterioration, and helps managers bring static earthing into interlock and digital monitoring systems.

For fuel terminals, chemical plants, and hazardous loading areas, this means better visibility, faster response, and a more reliable static electricity control process.
