An overfill and static protection system compliant with API standards, designed to help prevent oil spills and protect the environment and personnel.

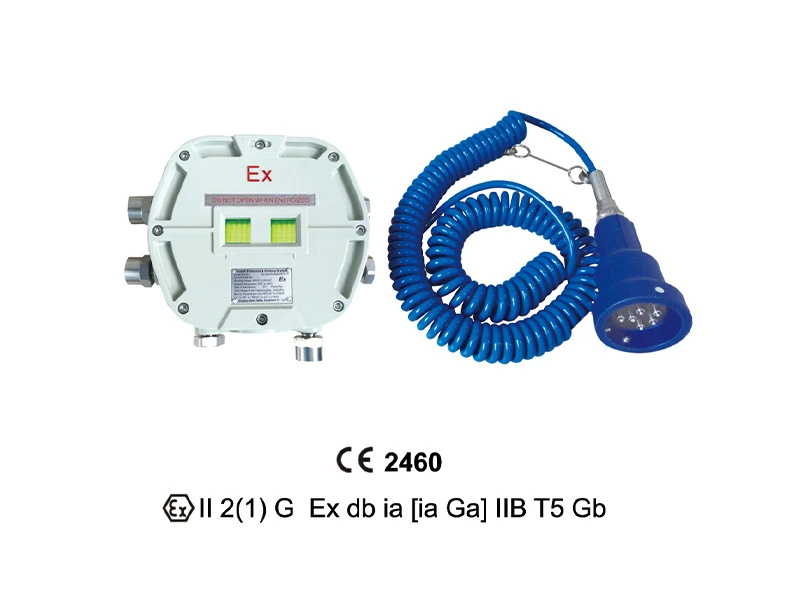

SLA-S-Y-API is an overfill and static protection system designed for oil loading and unloading operations.
Compliant with API standards, the system monitors key safety conditions during loading and can trigger alarm and interlock control when abnormal conditions are detected.
It helps prevent oil spills, improve loading safety, and provide better protection for the environment and personnel.
During oil loading and unloading operations, overfill incidents can disrupt operations and create environmental and personnel safety risks.
At the same time, if critical safety conditions are not monitored in time, the risks associated with hazardous area operations may increase.
SLA-S-Y-API helps strengthen site safety control, prevent oil spills, and improve operational safety and reliability.
The system is connected to the loading operation loop and related safety monitoring lines.
It continuously monitors key safety conditions during the loading process.
When all safety requirements are met, the operation can continue.
If abnormal conditions are detected, the system triggers alarm and outputs an interlock signal to prevent loading from continuing.
Oil loading and unloading
Terminal and tank farm loading operations
Hazardous liquid transfer
Petrochemical and chemical loading sites
Industrial applications requiring overfill protection
Helps prevent oil spills
Improves loading site safety
Supports alarm and interlock management
Protects the environment and personnel
Improves operational reliability
| Power Supply | 85V–250V |
| Ground Loop Resistance Threshold | ＜10Ω |
| Alarm Indication | Visual alarm |
| Interlock Output | NO/NC dry contact |
| Certification | II2(1)G Ex db ia [ia Ga] IIB T5 Gb |
| Plug Type | 5-wire / 6-pin |
It is mainly used for overfill and static protection in oil loading and unloading operations.
Its main purpose is to help prevent oil spills and improve site safety through alarm and interlock control.
SLA-S-Y-API complies with API standards and is suitable for relevant oil loading applications.
