A static grounding monitoring system for hazardous liquid loading and unloading operations, designed to monitor grounding status in real time and provide audible and visual alarm as well as interlock control.

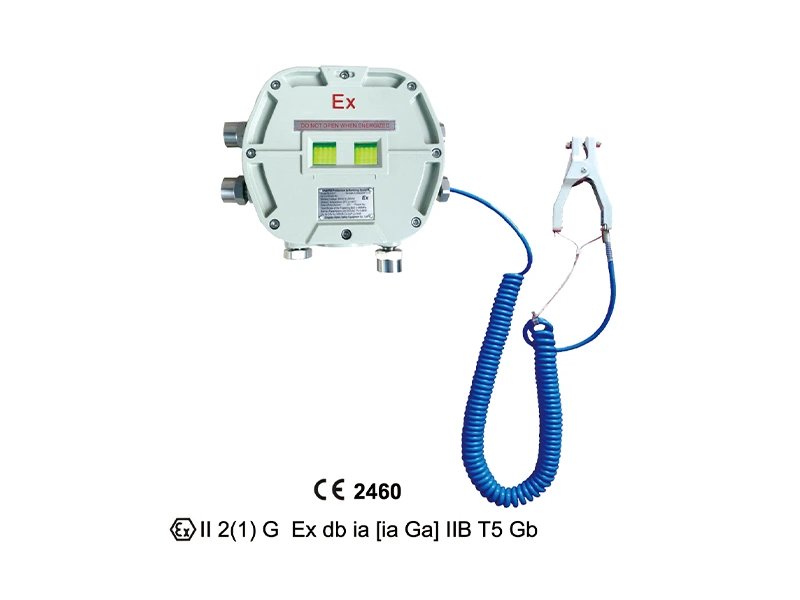

SLA-S-Y-GE is a static grounding monitoring system designed for hazardous liquid loading and unloading operations.
It monitors grounding status in real time and allows the operation to continue only when grounding conditions meet safety requirements. If abnormal grounding conditions are detected, the system triggers visual alarm and outputs an interlock signal.
It is suitable for tanker loading, drum filling and other industrial applications requiring static grounding monitoring.
During hazardous liquid loading and unloading operations, static buildup may create a risk of fire or explosion.
If grounding conditions are not monitored in time, both operational safety and system interlock control may be affected.
SLA-S-Y-GE helps strengthen static grounding management and improve safety and reliability in hazardous area operations.

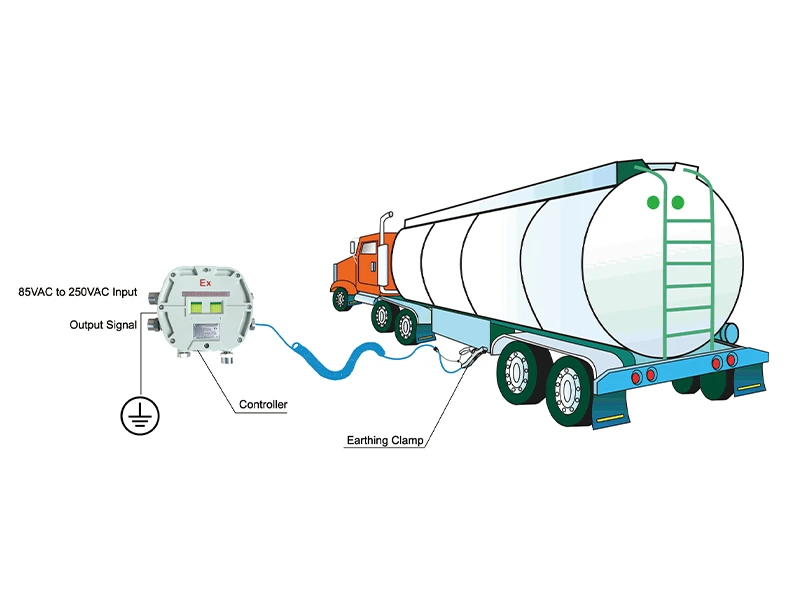

Connect the grounding clamp to the target equipment.
The system monitors the grounding loop status in real time.
When grounding conditions meet safety requirements, the operation can continue.
If grounding becomes unsafe, the system triggers audible and visual alarm and outputs an interlock signal.
Hazardous liquid loading and unloading
Tanker loading and unloading
Drum and small container filling
Chemical and petrochemical loading sites
Industrial applications requiring static grounding monitoring
Improves safety in hazardous area operations
Provides real-time grounding status monitoring
Supports visual alarm and interlock management
Reduces safety risks caused by static electricity
Improves operational reliability
| Power Supply | 85V–250V |
| Ground Loop Resistance Threshold | ＜10Ω |
| Alarm Indication | Visual alarm |
| Interlock Output | NO/NC dry contact |
| Certification | II2(1)G Ex db ia [ia Ga] IIB T5 Gb |
| Clamp / Cable Configuration | Optional cable lengths available, including 5 m, 7 m, 10 m, 13 m and 15 m |
It is mainly used for static grounding monitoring in hazardous liquid loading and unloading operations.
Its main functions include real-time grounding status monitoring, audible and visual alarm, and interlock output control.
Yes. SLA-S-Y-GE complies with ATEX, CCC and China explosion-proof requirements, making it suitable for relevant industrial applications.
