An overfill and static protection system for oil loading operations, designed to allow loading only when both overfill detection and static grounding verification are confirmed.

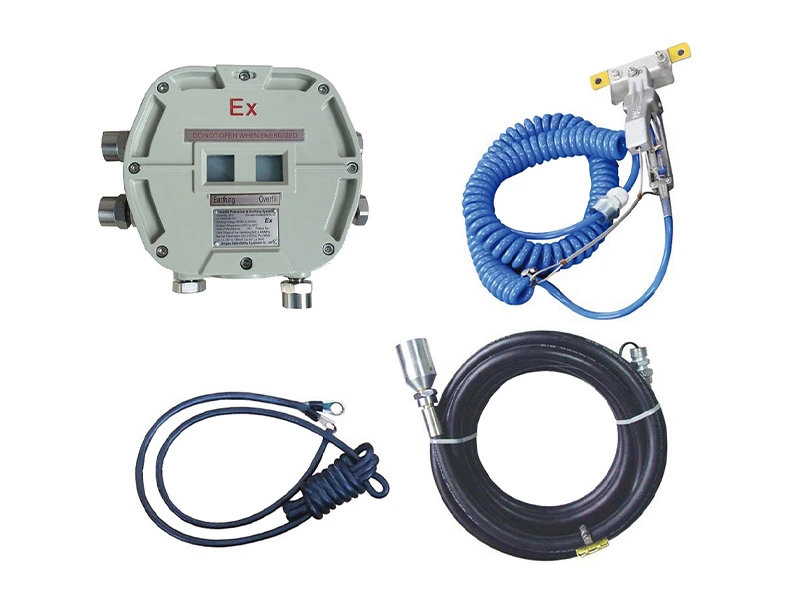

SLA-S-Y-OP is an overfill and static protection system designed for oil loading operations.
It performs both overfill detection and static grounding verification, and the system enters a permissive state only when both safety conditions are confirmed.
Using patented liquid level detection technology developed under a China National Invention Patent, it helps prevent oil spills, improve site safety, and provide better protection for the environment and personnel.
During oil loading operations, relying on only one type of safety detection is often not enough.
If overfill status and static grounding status are not both confirmed, the risks of product spills or hazardous area incidents may still remain.
SLA-S-Y-OP combines overfill protection and static verification, allowing loading only when both conditions are safely confirmed, thereby improving operational safety and control
The system is connected to the loading operation loop and receives both liquid level detection and static grounding signals.
It continuously monitors liquid level status and static grounding status.
Only when both overfill detection and static grounding verification are confirmed does the system enter a permissive state and allow loading to continue.
If either condition is not satisfied, the system triggers alarm and outputs an interlock signal to prevent loading from continuing.
Oil loading and unloading
Terminal and tank farm loading operations
Hazardous liquid transfer
Petrochemical and chemical loading sites
Industrial applications requiring both overfill protection and static verification
Dual confirmation of overfill and static conditions
Loading is allowed only when all safety requirements are met
Uses patented liquid level detection technology
Helps prevent oil spills
Protects the environment and personnel
| Power Supply | 24V or 220V |
| Ground Loop Resistance Threshold | ＜10Ω or ＜60Ω |
| Alarm Indication | Audible and visual alarm |
| Interlock Output | NO/NC dry contact |
| Certification | Ex db ia IIB T6 Gb |
| Clamp / Cable Configuration | Optional cable lengths available, including 5 m, 7 m, 10 m, 13 m and 15 m |
It is mainly used for oil loading operations where both overfill protection and static verification are required.
Its key feature is that loading is allowed only when both overfill detection and static grounding verification are confirmed.
SLA-S-Y-OP uses patented liquid level detection technology under a China National Invention Patent.
