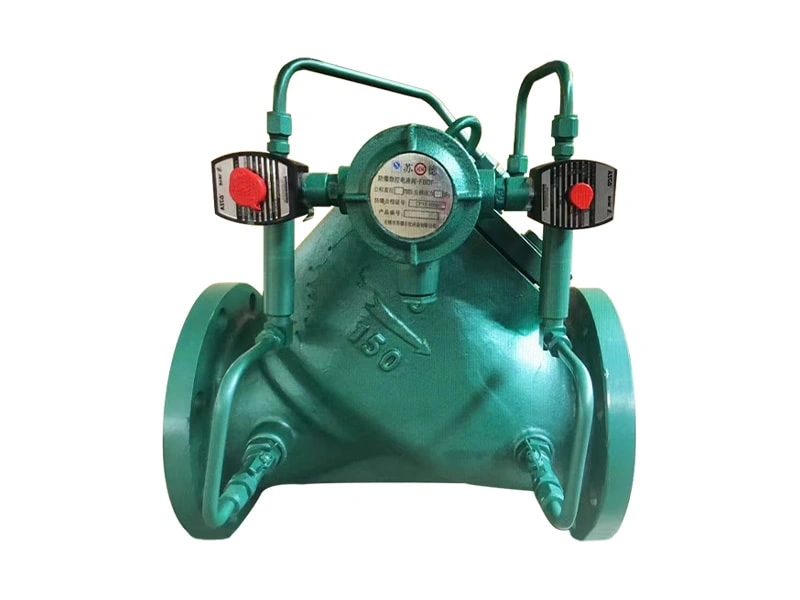

Name: Digital Control Valve
Brand: ALPTEC

Digital Control Valve

Talk to an Engineer

Request a Quote

01

Stable and reliable, with a service life of over 100,000 cycles.
02

Adjustable opening and closing speed, eliminating "water hammer".
03

Can be controlled automatically or manually, with no need for a bypass loop.

04

Power supply options: AC 220V or DC 24V.
05

Flexible operation, simple structure, and easy maintenance.
06

Can be installed horizontally or vertically; piston-type valve has a wider application range than diaphragm-type electro-hydraulic valves.

07

Suitable for pipeline delivery control of liquid and gaseous products, including petroleum, chemicals, water, natural gas, and liquefied gas.
08

Controlled by a controller, with stepless opening and closing, ensuring constant flow and compensation.

Note: The D and D1 standards in the table are GB/T 1.6MPa RF (other specifications are available upon request)

Working Medium	Gas, Liquefied Gas, Petroleum, Chemicals, Water, Foam, Steam
Medium Temperature	-20C~+80℃	-40℃~+80℃	-18℃~150℃
Working Pressure(Mpa)	0.01~1.6	0.02~2.5	0.04~5.0
Input Power	AC:220V±10% DC:24V±10%
Maximum Operating Current	AC:70mAx2 DC:500mAx2
Power	AC:220V-15W DC:24V-12W
Size(DN)	32、40、50、80、100、150、200、250
Service Life	>100000times
Certification	ExdllBT4
