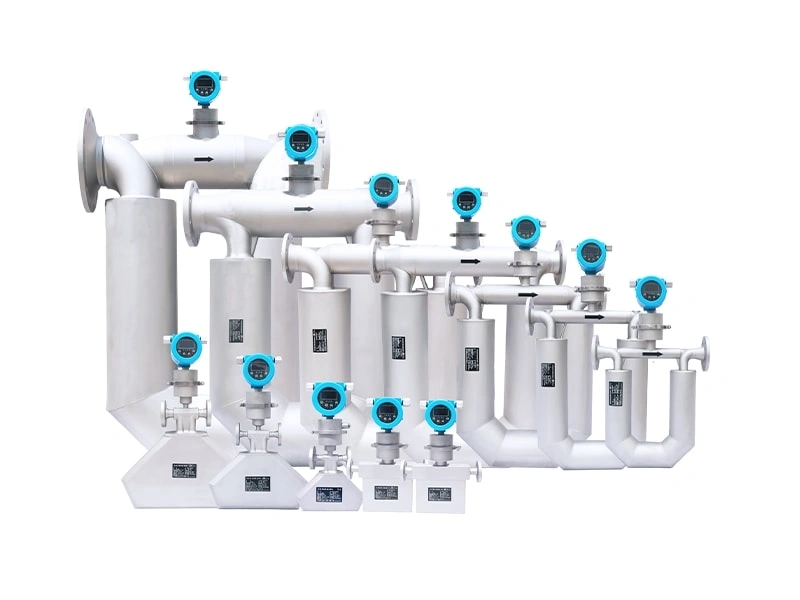

ADD VALUE K Series Coriolis mass flowmeters have unmatched high accuracy, wide turndown range, and reliable measurement stability and repeatability, broadest range of communication and connectivity options and peripheral products meet all field and cost requirements.
| Mass | |
|---|---|
| Flow Error | ±0.1%/±0.15%/±0.2%/±0.35%/±0.5% |
| Repeatability | ±0.025% |
| Density | |
| Density Error | ±0.0005g/cm³ |
| Repeatability | ±0.0001g/cm³ |
| Measuring Range | (0.2-2.0)g /cm³ |
| Electrical Parameters | ||
|---|---|---|
| Power Supply | 24VDC or 220VAC adaptive | |
| signal Way | 4-20mA, Pulse, RS485,HART Dual current or dual pulse isavailable upon request |
|
| Ambient Parameters | ||
| Ambient Temperature | (-40-60)℃ | |
| Explosion-proof | ||
| Explosion-proof Grade | Sensor | Ex ib II CT1~T6 Gb |
| Transmitter | Ex d [ ib] lIC T6 Gb | |
| Protection | ||
| Protection Class | Sensor | IP66/IP67 |
| Transmitter | IP66/IP67 | |
| Material | ||
| Measuring Tube Material | S31603;S30403;S22053;HC276; | |
| Shell Material | S31603;S30403; | |
| Power Consumption | ||
| BPM Transmitter | Maximum Power Consumption ≤ 11w | |
